- The product adopts BLE 4.0 (Bluetooth low energy) technology and ergonomic design, can fix on steering wheel of cars and control smart mobile phones,iPad other devices with Bluetooth function, make driving more convenient and safer.
Most Bluetooth-enabled iOS 8.0 or above , Android OS 4.4 or above.
- Just suitable for connecting mobile phones and tablet PCs. But Not Suitable for car device / car Android tape recorder / car audio / radio / DVD / CD / Navigation / car tablet . . .
- We promise we will test the product carefully, and then ship to you.
- Very suitable as a gift. Support most music app.

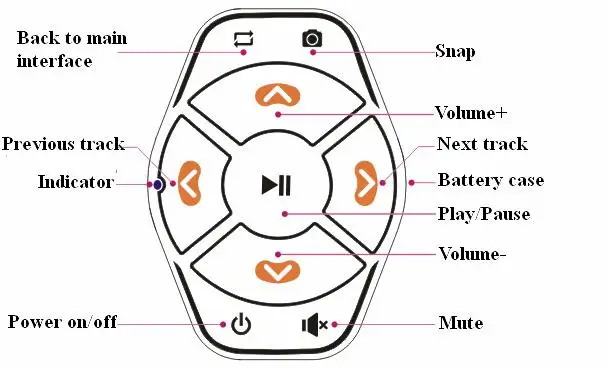

Back to the main interface
Power on / off
Play / Pause
- Built-in BLE4.0 (Bluetooth low energy) chip with low consumption and fast response
- Compatible with Android and ios
- 360 degrees remote control
- Fast and automatic re-connection
- 9 functional buttons
- Adopts ergonomic design, easy to fix
- Use standard CR2032 battery
1.Bluetooth version: BLE (V4.0)
2.Remote control distance: > 15 meters
3.Compatible system: Android 4.3+, IOS 7.0+
4.Working voltage: DC 1.9-3.6V
5.Working current: 15mA
6.Standby current: 0.7uA
7.Working frequency: 2.4GHz ISM band
8.Transmit power: default 0 dBm
9.Battery Specification: CR2032-3V
10.Dimensions: 13.5(L) * 6(W) * 3.5(H) CM
12.Working temperature: -10~70 ℃
13.Working environment humidity: 0 ~ 95%
Directly fix the BLE remote control on proper position of steering wheel, make sure easy to operate.
Before use, please pull out the battery insulating sheet, press to power on, then the LED indicator blinks slowly.
Turn on the Bluetooth function of the mobile phone and search the device "X09" then connect it, LED indicator goes out after connected, then you can control the mobile phone by the BLE remote control.
After the mobile phone is out of Bluetooth effective distance and returns again, usually it can re-connect automatically.
If re-connection fails or the device can not work, please turn off the Bluetooth function of the mobile phone and turn it on again to work normally.
1. 5 minutes after disconnected Bluetooth, the BLE remote control shut down automatically.
2. Long press can also turn off, the indicator flashes 3 times rapidly.

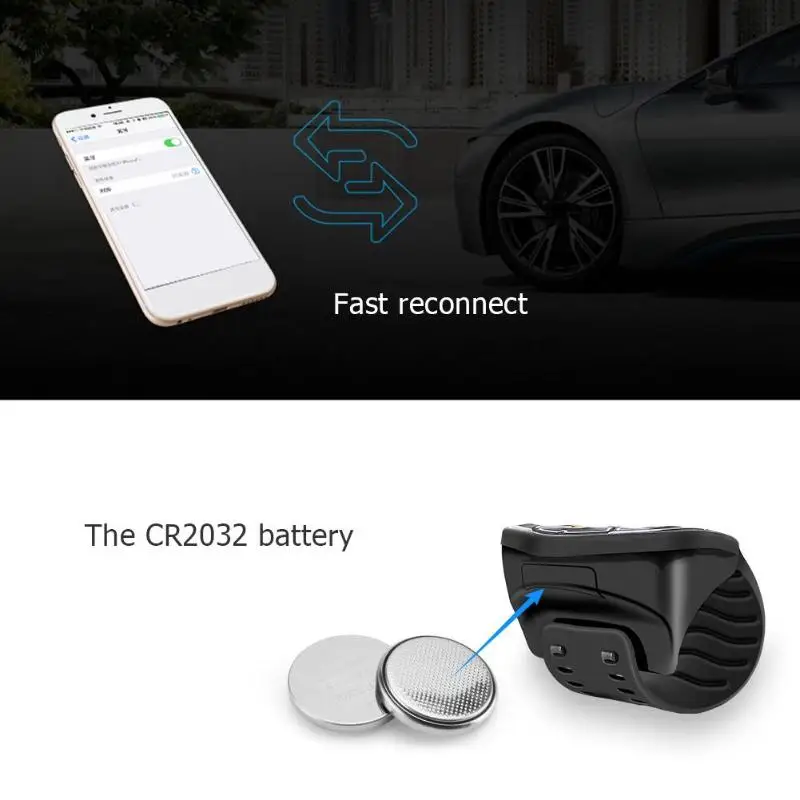

This product is built in a standard CR2032 battery, the battery life is probably from few months to half an year according to using frequency.
The BLE remote control can not power on when battery runs out, in this case you need to replace the battery.
1. Pull the battery case out as shown in the image below.
2. Put"+" pole side of the battery on the same side of the battery cover marked "+" pole, then re-insert the case into the battery compartment, do not install backward.
Item Height: 3.5cm
Item Width: 6cm
Item Length: 13.5cm
Model Name: Car Steering Wheel Bluetooth Remote Control
Material Type: Smart Remote Control
Item Type: Remote Controls
Item Weight: 46g
Color Name: black
